Control Systems for Mixers

Whether the basic version, integration into higher-level process control systems or data acquisition hardware and software: a wide range of control options are available for the NETZSCH mixers and de-aerators – talk with our experts. It should be noted that the execution of the operator terminal depends on the protection class of the machine.

Type of Machine / Control System	NETZSCH `Base`	NETZSCH TEXT	NETZSCH `Graph`
`Ψ-Mix^®` Inline Disperser			√
PMD / PMD-VC Intensive Mixers	√	√	√
`MasterMix^®` Dissolver	√	√	√
PMH / PML Planetary Mixer	√	√	√
`MaxShear` Inline Disperser	√
VMS - Vertical Max-Shear Rotor/Stator Mixer	√
NETZSCH DA / DA-VS Vacuum De-Aerator	√

Custom solutions and expert advice await! Start your project today

Your Inquiry

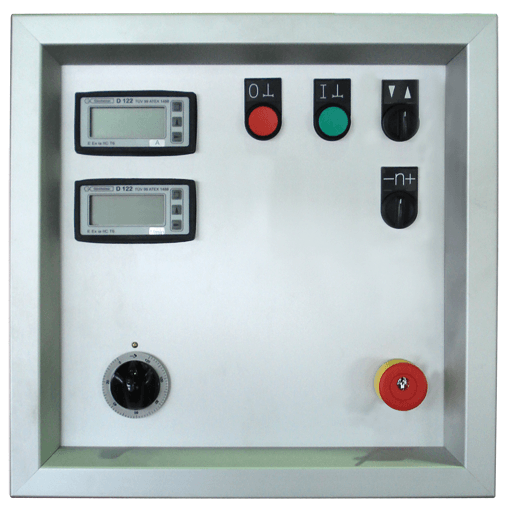

Operator panel NETZSCH Base — Operator panel NETZSCH `Base`

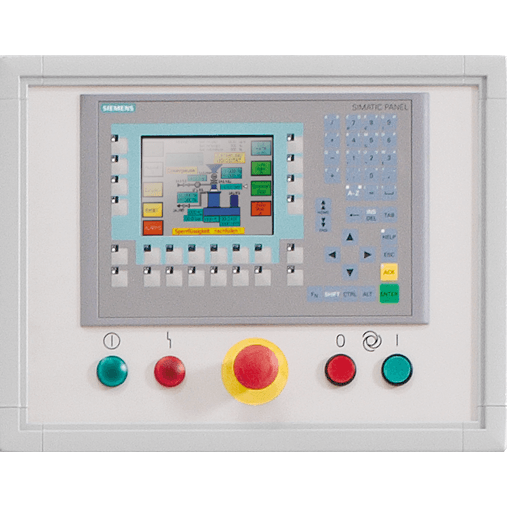

Operator panel NETZSCH Graph — Operator panel NETZSCH `Graph`

Function / Machine	PMD / PMD-VC	`MasterMix^®`	PMH / PML	`MaxShear`	Vertical `MaxShear`	De-Aerator
Display of operation, input and calculation parameters on digital displays
Power Disperser/Mixer1/De-Aerator	√	√	√	√	√	optional
Power Mixer2			√
Current consumption Mixer2/De-Aerator	√					√
Speed Disperser/Mixer1/De-Aerator	√	√	√	√	√	optional
Speed Mixer2			√
Pointer instruments
Temperature
Vacuum						√
Push button
Disperser/Mixer1/Main drive ON/OFF	√	√	√	√	√	√
Mixer2 ON/OFF	√		√
Lifting column RAISE/LOWER (two hand control)		√	√
Vacuum pump ON/OFF						√
Rotary switch
Lifting column RAISE/LOWER	√
(one-button operation) for Disperser/Mixer1/ Main drive speed INCREASE/DECREASE	√	√	√	√	√	optional
(one-button operation) for Mixer2 speed INCREASE/DECREASE			√
Light clamping arms CLOSED		√
Mechanical timer to pre-select the mixing time (0 – 30 min)		√
Emergency stop	√	√	√	√	√	√
Depending on the machine design further displays and/or controls as an option for
Product temperature	√	√	√			√
Vacuum	√	√	√			√
Scraper		√
Weighing system	√
Dosing system	√
Operation and malfunction lights as well as operator panel with LOCAL/REMOTE selector switch (functionality as an option)	√

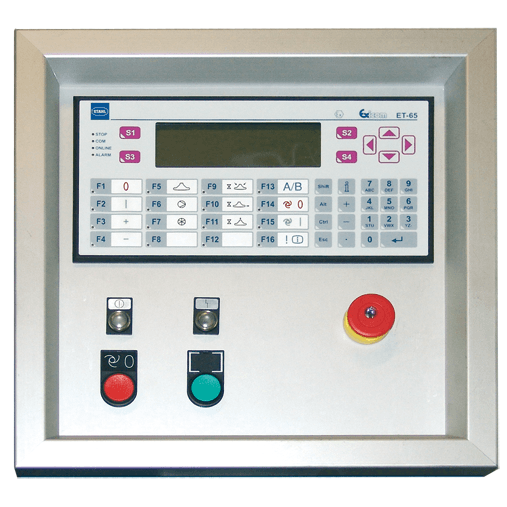

Function / Machine	PMD / PMD-VC	`MasterMix^®`	PMH / PML
Text terminal for displaying
Power Disperser/Mixer1	√	√	√
Power Mixer2			√
Current consumption Scraper	√
Speed Disperser/Mixer1	√	√	√
Speed Mixer2			√
Push button
Lifting column RAISE/LOWER (two hand control)		√	√
Push buttons at the text terminal
Disperser/Mixer1 ON/OFF	√	√	√
Scraper/Mixer2 ON/OFF	√
Lifting column RAISE/LOWER	√
(one-button operation) for Disperser/Mixer1 speed INCREASE/DECREASE	√	√	√
(one-button operation) for Mixer2 speed INCREASE/DECREASE			√
Input of nominal and threshold values	√	√	√
Automatic operation
with default values	√	√	√
machine is run up to the default values	√	√	√
Display of operational and error messages as text	√	√	√
Shut-off functions can be selected and combined
Timer	√	√	√
Temperature	√	√	√
Emergency stop	√	√	√
Depending on the machine design further displays and/or controls as an option for
Product temperature	√	√	√
Vacuum	√	√	√
Scraper		√
Weighing system	√	√
Dosing system	√
Operation and malfunction lights as well as operator panel with LOCAL/REMOTE selector switch (functionality as an option)	√	√	√
Data aquisition system
`MessDat`	√	√	√
`NETZSCH-Connect`	√	√	√

Function / Machine	`Ψ-Mix^®`	PMD / PMD-VC	`MasterMix^®`	PMH / PML
Graphic terminal for displaying
Power Disperser/Mixer1	√	√	√	√
Power Mixer2				√
Current consumption Scraper		√
Speed Disperser/Mixer1	√	√	√	√
Speed Mixer2				√
Current number of process step	√
Rotor pressure (product transfer)	√
Pump speed	√
Pump torque	√
Pump pressure (product supply)	√
Product temperature	√
Speed of rotary valve (dosing rate)	√
Torque of rotary valve	√
Pressure solids feeding	√
Sealing fluid temperature	√
Sealing fluid level	√
Viscosity adjustment active	√
Remaining running time	√
Trend charts	√
Push button
Lifting column RAISE/LOWER (two hand control)			√	√
Push buttons at the text terminal
Disperser/Mixer1 ON/OFF		√	√	√
Scraper/Mixer2 ON/OFF		√
Lifting column RAISE/LOWER		√
(one-button operation) for Disperser/Mixer1 speed INCREASE/DECREASE		√	√	√
(one-button operation) for Mixer2 speed INCREASE/DECREASE				√
Input of nominal and threshold values	√	√	√	√
Automatic operation
with default values	√	√	√	√
machine is run up to the default values	√	√	√	√
Display of operational and error messages as text	√	√	√	√
Shut-off functions can be selected and combined
Timer	√	√	√	√
Temperature	√	√	√	√
Pressure	√
Emergency stop	√	√	√	√
Depending on the machine design further displays and/or controls as an option for
Product temperature		√	√	√
Vacuum		√	√	√
Scraper			√
Weighing system		√	√
Dosing system		√
Operation and malfunction lights as well as operator panel with LOCAL/REMOTE selector switch (functionality as an option)		√	√	√
Data aquisition system
`MessDat`	√	√	√	√
`NETZSCH-Connect`	√	√	√	√
