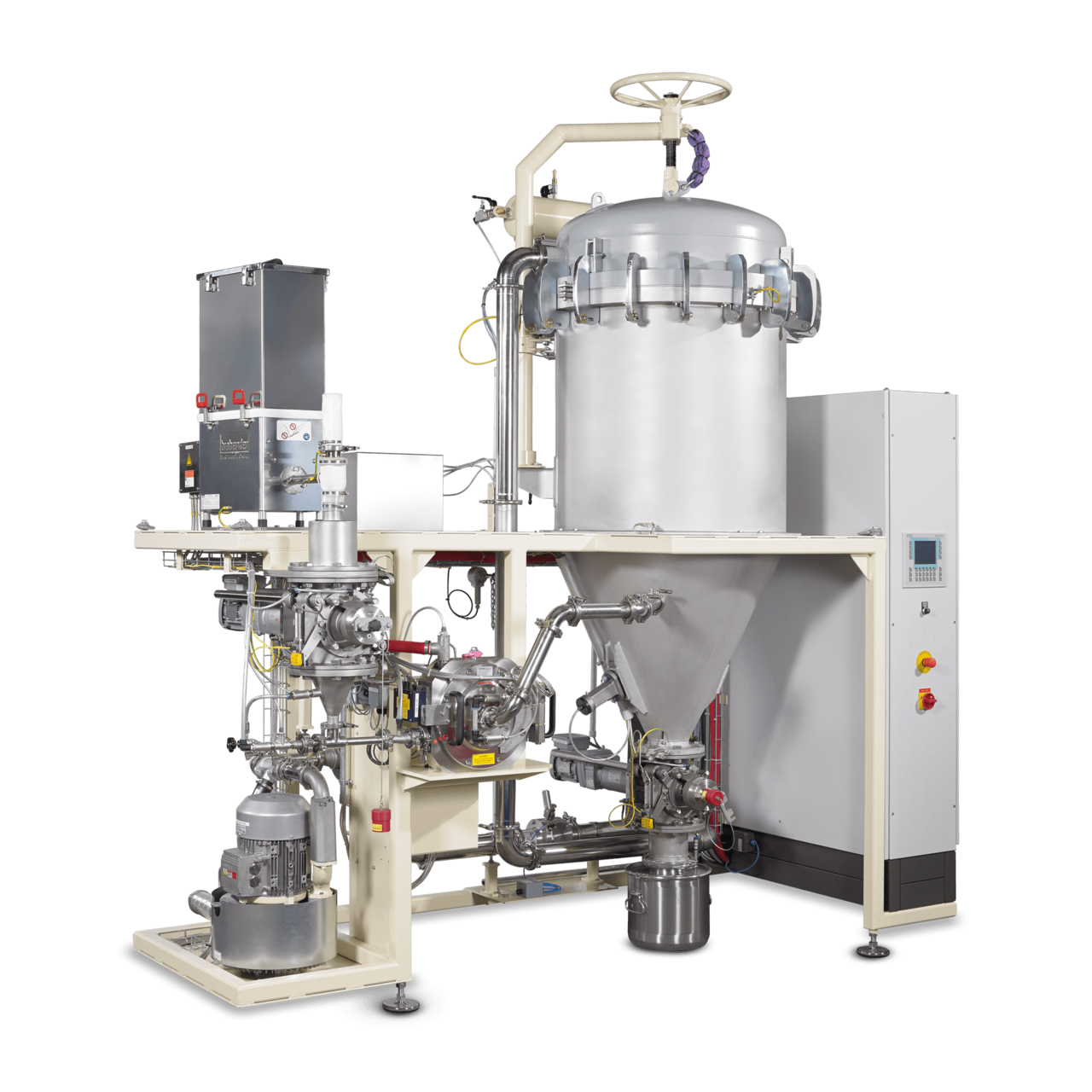

Hose filter in
Top Removal Execution

In Top Removal dust filters the filter hoses and -baskets are removed from the top via the clean gas side. Depending on the application case or use the dust filter execution is designed and put together from a wide-ranging portfolio with many, varied options.

• Pressureless, pressure shock resistant or pressure relieved round- or rectangular filter in various material executions
• Filter areas from 0.2 m² up to 1000 m²
• Equipped with unscrewable or hinged cover for free access to the clean gas chamber
• Beater floor or complete filter upper part can be lifted off using a crane or swivel arm
• Rapid locking system SmartLock for reduction of time required for opening and closing flange connection between raw- and gas side chamber
• Filter perforation plate can be lifted off completely with filter hoses and -baskets
• Snap-Ring technology for high dust-tightness to the clean gas chamber and the lowest possible residual dust content
• Delivery of all commercially available filter hose qualities as well as special equipment e.g. for higher operating temperatures or very fine dusts
• Filter baskets in galvanized or rustproof execution
• Rectangular construction also possible for lower negative pressures and greater air volumes
• Accessible filter upper part
• Execution with self-supporting filter elements also possible
